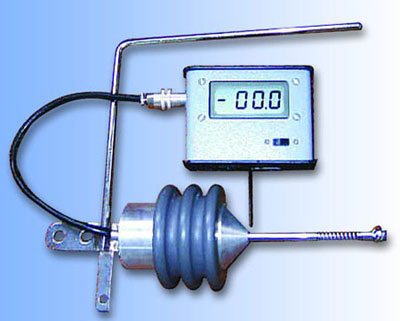

HRWG-15交流线路绝缘子串电压分布测量表检测仪 |
|
|
|
|
|
★HRWG-15型交流线路绝缘子串电压分布测量表使用说明书 |
|
|
|
|
|
HRWG-15型表主要用于交流线路1~500kV的带电测量过线塔的绝缘子串的电压分布值和运行状况,低值和零值绝缘子的检测及检出,及早并及时发现和解除安全隐患,
确保输电线路的可靠安全运行。也可用于试验室内各种1~35kV以及交流电压的测量。是一种理想的保障线路运行安全的检测仪表和带电作业辅助工具。
HRWG-15型交流线路绝缘子串电压分布测量表检测仪,(HRWG-11型交流低零值绝缘子带电检测仪,HRWG-12型交流线路绝缘子串电压分布测量表)说明:HRWG-15型检测仪表为HRWG-11
型和HRWG-12型的综合型产品
主 要 技 术 参 数
测量范围:1~30kV
精 度:1级
极间耐压:40kV
极间电容:2pf
输出形式:液晶数字显示
电 源:DC9V 6F22×1节(200)小时
体 积:140×170×180(mm)
重 量:500g
|
|
|
|
|
|
HRWG
- 15 type ac line voltage distribution Measuring Instrument
insulator string |
|
|
Features
HRWG - 15 type gauge is mainly used in ac line 1 ~ 500kV
charged measuring line of the tower of the distributed voltage
insulator string value and operation condition, low value
and zero insulator detection and detected, early and immediately
find and remove safe hidden trouble, ensure transmission
line reliable safety operation. Can also be used to test
indoor all sorts of 1 ~ 35kV and ac voltage measurement.
It is a kind of ideal security line for safe operation of
the measurement instrument and charged homework auxiliary
tools.
Technical parameters
Measuring scope: 1 ~ extruded
Pure degree: rank 1
Output form: LCD digital display
Electrical source: DC9V 6F22 x 1 day (200) hours
Body product: 140 x 170 x 180 (mm)
weight: 500g
|
|
|
|
|
|
|
|
