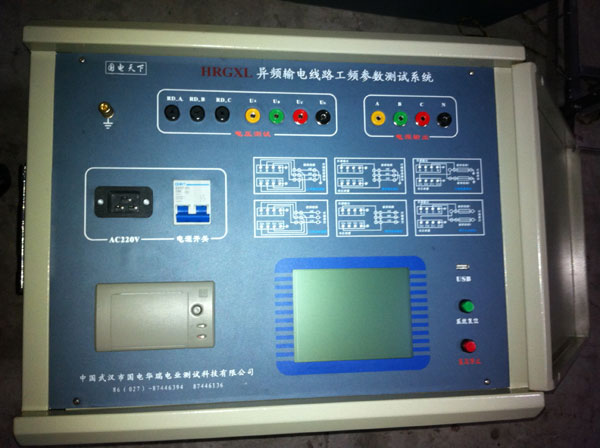

HRGXL工频线路参数测试仪 |
|
|
★HRGXL工频线路参数测试仪使用说明书 |
|
|
|
|
|
一、 概 述
HRGXL工频线路参数测试仪,是专门用于线路工频参数测试的仪器。仪器电路设计精巧,思路独特,使得其性能优越,功能强。仪器采用大屏幕液晶显示,中文菜单提示,操作非常简单,配备高速打印机。仪器体积小、重量轻,便于携带进行户外作业,大大减轻了试验人员的劳动强度,提高了工作效率。
二、 主要技术指标及使用条件
1. 电压测量范围:AC 25V~500V
2. 电流测量范围:AC 0.025A~50A
3. 测量精度:电压、电流、阻抗等:0.2级;
功率:0.5级
4. 工作温度:-10℃~50℃
5. 工作湿度:0~80%
6. 工作电源:AC220V±10% 50Hz±1Hz
7. 外形尺寸:360mm×260mm×160mm
8. 仪器重量:4kg
我们公司提供为用户选择使用的测试设备的配置方式有如下2种:
1.工频工作电源测试方式,组合式测试装置(全部总重量:大于300kg),各个硬件组成部分体积大笨重,携带时需要有工程车辆运输;测试时需要在相关硬件设备配合下输出能力才能强,软件功能强性能好,但价格相对比较低。
2.异频工作电源测试方式,一体化测试装置(不需要再配备其他任何相关测试部件,总重量:68kg),方便携带,自身的输出能力强,软件功能强性能好,但价格相对比较高。
|
|
|
HRGXL
industrial frequency circuit parameters tester |
|
|
Overview
HRGXL industrial frequency circuit parameters tester is
used exclusively XianLuGong frequency parameter testing
instruments. Instrument circuit design is exquisite, the
thought is unique, making its superior performance, the
function is strong. Instrument adopts large-screen LCD,
Chinese menus hint, easy operation, equipped with high-speed
printers. Instrument small volume, light weight, easy to
carry outdoor homework, greatly reduced the experimenter
labor intensity, improve the working efficiency.
Technical parameters
Voltage measurement range: AC 25V ~ 500V
Current measurement range: AC 0.025 A ~ 50A
Measuring precision: voltage, current, impedance: 0.2 level;
Power: 0.5 level
|
|
|
|
|
|
Our
company offers the user choose to use the test equipment
configuration has the following two kinds:
1 working
power frequency test methods, test equipment combined (total
weight of all: more than 300kg), the various hardware components
of a large volume of heavy, carrying construction vehicle
transport
when needed; test required under the relevant hardware devices
with output capacity be strong, powerful software performance,
but the price is relatively low.
2 different
frequency operating power tests, integration testing device
(no need to test with any other relevant parts, with a total
weight: 68kg), easy to carry, their output capacity is strong,
powerful software performance, but the price is relatively
high .
|
|
|
|
|
|
|
|
|
|
|
|
