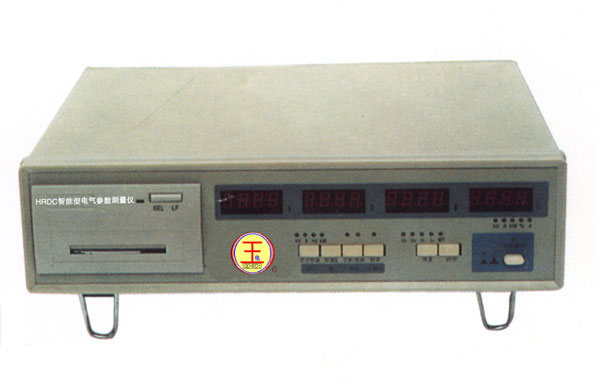

The tester
can measure the no-load of the transformer, and the active
current (voltage) value, power factors of the short-circuit
experiment at the same time with computer controlling,
digital display, synchronous samples in avoid of many
traditional shortages.
Features:
1. Converting automatically without connecting CT\PT
outside
2. Short-circuit losses: the value of the resistance
voltage converts to the one of the 75℃ situation
3. Be made up to comprehensive consoles for transformers
with direct resistance instrument and voltage controller
Voltage : 0~600V(circuit voltage)
Current:0.3~90A
Accuracy:0.5%
Working power resource:AC220V 50HZ
★Instruction
of HRKFR Comprehensive Analyzing Tester of Non-load, Lode
and Capability for Transformer
★Instruction
of HRDC/HRBCD Intelligent Tester of the Electric Losses
Features for transformer |
|
