★HRGKT-I型高低压开关柜通电试验台使用说明书 |
|
|
|
|
|

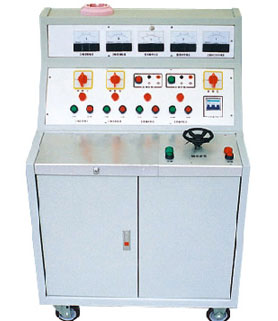

HRGKT-I型高低压开关柜通电试验台用于高低压开关柜生产厂家对所生产的高低压开关柜进行出厂前的各项通电试验。它能提供各种交、直流电源,便于对开关柜的检测,以检查设备正常与否,提高工作效率。 |
|
|
一、技术参数:
输入电源:三相四线AC380V
输出电压及电流:
1、 三相AC 0 – 10A输出(〈100V,可调值〉 一组
2、 三相AC100V输出 (固定值) 一组
3、 交流操作电压输出 AC 0~400V, 220V时,电流小于10A
4、 直流操作电压输出 DC 0~260V,10A
5、 直流合闸电源输出 DC 0~300V 一组
6、单相AC220V输出(固定值,插座形式) 二组,
7、三相AC380V输出(固定值,接线柱) 一组,
8、外形尺寸:560*520*850mm
9、重量:45kg
|
|
|
二、功能说明
1、输出线接线柱前串接10A、16A空气开关作为短路保护。根据用户特殊要求,参数中3 – 4项,可以同时合分闸,没有互锁。请用户注意使用中的要求。
最好每次只能有一组电源输出工作。
2、技术参数中6–7项不受接触器控制,只要总电源开关闭合,即可输出单相AC220V输出(固定值)、三相AC380V输出(固定值),
3、直流合闸电源输出DC 0 -300V(大容量)是独立的单元 ,可以脱离主体柜,单独使用;也可以与主体柜合并使用,直接从柜体后面板直流300V输出接线柱输出。其详细说明见第五:HRGKT-I开关合闸电源。
4、三相转换开关K1、三相AC380V电压表
|
|
|
|
|
|
HRGKT
- I type high-low voltage switchgear electrify test-bed
instructions |
|
|
HRGKT - I type high-low voltage switchgear
electrify test-bed for high and low voltage switchgear producers
to produces the high and low voltage switchgear before they
leave the factory of various electrify test. It can provide
all kinds of ac, dc power, and is convenient for the test
to check switch equipment is normal or not, improve work
efficiency. |
|
|
1) Technical parameters:
The input power: the three-phase four-wire AC380V
Output voltage and current:
A. Three-phase AC 0-10 output (< > phase failure is
100V, can tone contours a group
B. Three-phase AC100V output (fixed value) a group
C. DC operating voltage output DC 0 ~ 260V, 10
D. DC off output power DC 0 ~ 300V a group
E. Single-phase AC220V output (fixed value, plug form) in
group 2
F. Three-phase AC380V output (fixed value, tweeters) a group
G. Overall dimensions: 56 * * 850mm 520
H. Weight: 45kg
|
|
|
2) function description
a) Output line before meet 10A, tweeters string areconcluded
by air switch as short circuit protection. According to
user's special demand, parameters of 3-4 items, can also
close break-brake, no interlock. Please pay attention to
the reqairements.
b) Technical parameters of 6-7 one does not suffer contactor
controlling, provided that the total power switch closed,
you can output AC220V output (single-phase and three-phase
fixed value) AC380V output (fixed value)
c) DC off output power DC 0-300V (large capacity) is an
independent unit, can leave the subject ark, use alone,
Can also with the main ark amalgamative use, directly from
the cabinet put oneself in another's position 300V output
terminals after panel dc output. The detail see fifth: HRGKT
- I switch off the power.
d) Three-phase conversion switch K1, three-phase AC380V
voltmeter
|
|
|
|
|
|
|
|
|
|
|
|
