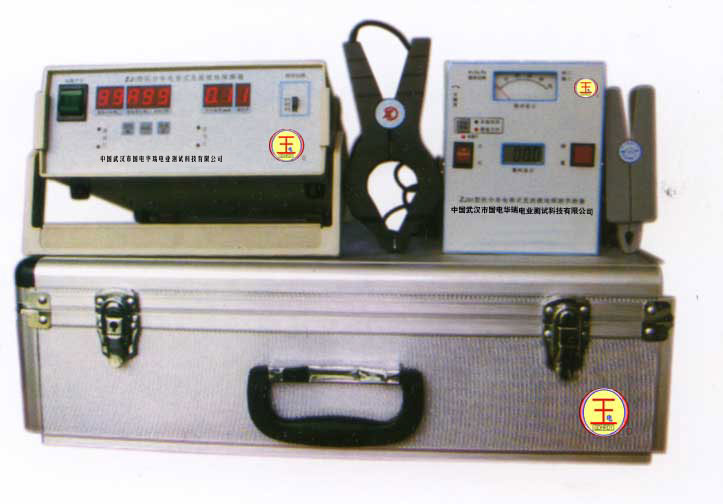

HRZJ3微机型抗分布电容式直流接地探测器 |
|
|
技术特点:HRZJ3型是在HRZJ1、HRZJ2型基础上开发的新一代微机型直流接地探测器。
1、不用安装,不用停电,不用摇绝缘,就能自动快速准确找到一点或多点接地故障位置。
2、直接显示接地电阻值,便于了解绝缘情况。范围:0-99KΩ。
3、直接显示对地电容值,便于了解电容干扰情况。范围:0-99uF或0-99KΩ.
4、显示接地方向,引导工作人员快速查找。
5、能适应交、直流串电引起的接地,环网供电接地,二极管隔离供电接地。
6、对半导体光字牌接地,一目了解,使查找复杂的信号回路,变得更简单了。
7、采用“心”圆设计的钳口,大、小线共用,不用换钳子。
8、24V、48V、110V、220V直流系统共用一套直流接地探测器。
9、探测灵敏度:≥50KΩ,指针、数字双显示,便于判断。特殊要求可制作≥100KΩ。
10、准确率:100%
11、抗电容干扰:>1200KΩ/uF
12、信号输出功率:<0.15w,内有限流保护,对继电保护、自动、操作回路没有影响,使用安全。
13、信号频率稳定度:±0.02Hz。
14、信号发生器尺寸:280mm(宽)×100mm(高)×300mm(深)
15、手持器尺寸:126mm(宽)×70mm(高)×156mm(深)
16、豪华铝合金外包装,携带方便。
17、交直流电源供电:AC/DC 220V。 |
|
|
|
|
|
HRZJ3
Microcomputer-Typed Detector of Anti-distributed Capacitive
Type Direct current Grounding |
|
|
With
continuous improvement of 20 years, it keeps the advanced
technology and creates the domestic origination.
Technological characteristics:
It is a new generation invented on the basis of HRZJ1
and HRZJ2 type.
1. It is possible to find out one-point or multi-point
abort situation without installation, electrical cutting,
and insulated pumping.
2. It directly displays grounding resistance data, which
is convenient to master insulating condition. Range: 0-99KΩ
3. It directly displays grounding electrical capacity
data, which is convenient to master electrical capacity
disturbing condition. Range: 0-99uKor 0-99KΩ.
4. Directly displaying the grounding direction can lead
the instructors to search rapidly.
5. It can adjust to the AC& DC looping current grounding,
token-ring power supply grounding, and diode isolation
power supply grounding.
6. Referring to semiconductor light grounding, it is easier
to find out complicated signal loop.
7. Pliers with “heart-shape” designing, it shares the
big or small lines without changing pliers.
8. 24V、48V、110V、220V direct current system shares a suit
of direct current grounding detector.
9. Detecting sensitivity: ≥50KΩ, both index and numerical
display is available, which is easy to judge. Special
requirement can reach ≥100KΩ
10. Accuracy:100%
11. Anti-electrical capacity disturbance:>1200KΩ/uF
12. Signal output power: <0.15w, containing protection
of current limitation, which has no influence on relay
protection of power system, and automatic or operative
loop, using safely.
13. Signal frequency stability: ±0.02Hz
14. Dimension of signal generator:280mm(width)×100mm(height)×300mm(depth)
15. dimension of portable machine:126mm(width)×70mm(height)×156mm(depth)
16. Deluxe Copper-aluminum Outer package is easy to carry.
17. AC & DC power supply: AC/DC 220V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
