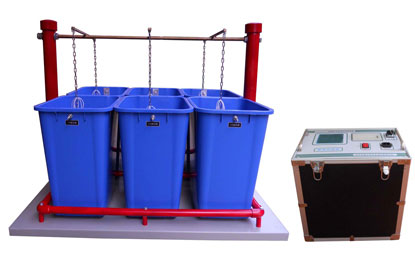

HRJNY绝缘靴(手套)耐压试验装置 |
|
|
★HRJNY型绝缘靴(手套)耐压试验装置说明书 |
|
|
|
|
|
一、产品简介
HRJNY型绝缘靴(手套)耐压试验装置是我公司根据绝缘靴(手套)的试验规程,并遵从广大用户意见而设计生产的。该产品有效的解决了过去不规则的测试方式,从而简化了测试手续,提高了测试速度。更可靠地鉴别绝缘靴(手套)的泄漏电流,绝缘老化,工频耐压等参数。保障了试验工作者的安全,是理想的绝缘靴(手套)专用设备。
其主要特点:
1) 可同时测试5双测试绝缘靴(手套),并可读取每双的泄漏电流;
2) 电极采用H62铜材加工,表面镀涂CU/EpNi5bc工艺,使表面放电量小于10pC;
3) 水箱采用全不锈钢,放水口为球阀;
整体结构分二层,可灵活拆卸,底部装配万向轮,可随意移动。
4)试验设备分:手动配置型的和全自动配置型的。
|
|
|
二、主要技术参数
1) 水槽:(长)1040×(宽)680×(深)390
2) 底座:(长)1010×(宽)650×(深)330
3) 耐压:3kV/1min
4) 测试量:每次5双
5) 质量:80kg
适用于各种规格绝缘靴(手套)和带电作业工器具的耐压测量试验。
工作电源:220V±10%,380V±10%
试验电压:0~500kV
工作频率:50Hz
|
|
|
|
|
|
HRJNY
type insulating boots (gloves) withstand test device |
|
|
Brief introduction
HRJNY type insulating boots (gloves) withstand test device
is according to the company insulation boots (gloves) test
procedures and follow the masses of users advice which is
to design and manufacture. This product effectively solved
the past irregular test ways, which can simplify the test
procedures, enhances testing speed. This product effectively
solved the past irregular test ways, which can simplify
the test procedures, enhances testing speed. Ensure the
test workers safety, is the ideal insulating boots (gloves)
special equipment.
Main features
a) But the same test five pairs of test insulating boots
(gloves), and can read each pair of leakage current,
b) Electrode using H62 copper processing, surface coating
besmear CU/EpNi5bc processes, so that the surface is less
than 10pC; put power
c) Tanks are made of full stainless steel, match-fixing
mouth for ball valve
d) Test equipment points: manual and automatic configuration
of allocation type.
|
|
|
Technical parameters
Sink: (long) 1040 x (wide) 680 x (depth) 1140
Base: (long) 1010 x (650 x width) (depth) 330
Pressurization: 3kV/1min
Test quantity: every time five pairs
Quality: 80kg
For a variety of boots (gloves) and the live working tools
and instruments measure the pressure test.
Power supply: 220V ± 10%,380V±10%
Test Voltage: 0 ~ 500kV
Operating Frequency: 50Hz
|
|
|
|
|
|
|
|
|
