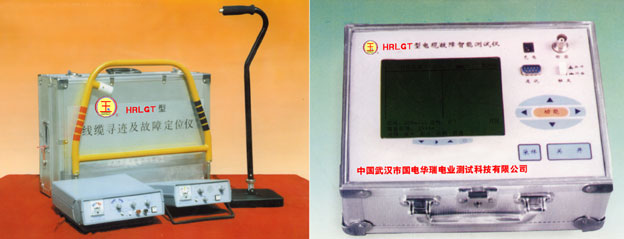

HRLGT(DM)电缆故障测试仪(地埋) |
|
|
用于测量各种市话电缆、高频通信电缆、地埋电缆及金属架空电缆上发生的开路(断线)、短路、接触不良接地等各种电缆故障。同时也可以对电力电缆的高阻闪络、高低阻性的泄漏性接地和电力电缆的断线、接触不良等故障位置进行遥测。仪器采用多种探测方式,应用当代电子技术成果,采用计算机技术及微电子技术,具有智能化程度高、功能齐全、使用范围广、测试准确、使用方便、交直流两用工作电源等特点。特别适用测试各种型号,不同等级电压的通信电缆和电力电缆。
★HRLGT(DMDL)电缆故障智能测试仪技术档案
|
|
|
主要技术参数:
(1)最远测试距离:32km (2)探测盲区:1m
(3)读数分辨率:1m (4)功耗:5VA
(5)重量:2kg |
|
|
|
|
|
HRLGT Type Portable Cable Fault
Locator |
|
|
This is used
for locating various faults of the cables for the city
cable, high frequency communication cable, buried cable
and medal overhead cable line. The faults include open
circuit, short circuit and poor contact. It also can be
used to telemetry the position of the fault, including
the leak grounding, wire breaking and poor contacting.
The instrument adopts many testing methods and the most
advanced electron technology fruits as well as the computer
technology and the microelectronic technique. It has a
high degree of intelligent, a full function, a large range
of use, an accurate testing, a convenient operation and
alternating-current power or direct current power source.
It is especially suitable for testing different types
and grades voltage cables.
★The
Technique File of the HRLGT (DMDL) Intelligent Cable Fault
Locator
|
|
|
Main
Technique parameter:
(1).The farthest testing distance: 32 km
(2).The detecting blind area: 1m
(3).Resolution reading: 1 m
(4).Power dissipation:5VA
(5).Weight:2kg
|
|
|
|
|
|
|
|
|
|
|
|
