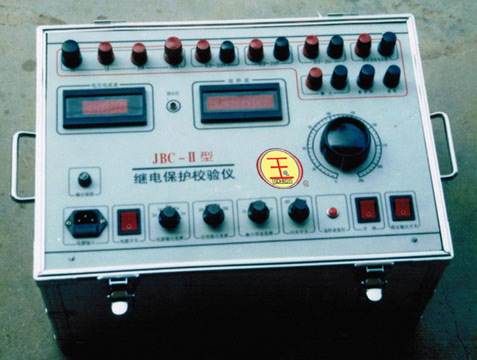

HRJBC继电保护综合测试仪 |
|
|
该仪器能对各类继电器进行各项常规校验,仪器内部的交直流电压、电流源采用了新的电源技术,操作简单明了,性能稳定。
主要技术指标: 交流电流:0-100A/10V可调
0-20A/35V可调 0-5A/8V可调 交流电压:0-250V/4A可调
直流电流:0-20A/25V可调 直流电压:0-250V/4A可调
定值输出直流电压:24V、48V、110V、220V
毫秒表时间:0-99.9999S(也可为99.9999S)
分辨率:0.1ms 电源:AC220V±10%
重量:30kg |
|
|
|
|
|
HRJBC Potable Relay Protection
Tester |
|
|
|
|
|
With easy-operation
and stable performance features, it has every normal tests
for relays, and both alternating and direct current power
adopt the newly power technology.
The key technical indexes:
Alternating current: 0-100A/10V (regulable) 0-20A/35V
(regulable) 0-5A/8V (regulable)
Alternating voltage: 0-250V/4A (regulable)
DC current: 0-20A/25V (regulable)
DC voltage: 0-250V/4A (regulable)
Rated output DC voltage: 24V、48V、110V、220V
Millisecond counter time: 0-99.9999S
Resolution factor: 0.1ms
Power source:AC220V±10%
Weight: 30kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
