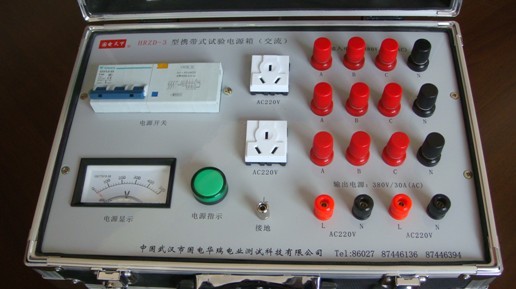

HRZD-3型携带式三相试验电源箱 |
|
|
|
|
|
|
|
|
电源箱主要是为在现场作业施工的仪器仪表试验设备或者有需求的其他场合提供多路分配的操作试验电源。电源箱均采用输入交流220V或380V的电源,输出电流大的特点,可进行开关电器的单分、单合操作的电源。我们公司生产的电源箱,且体积小,重量轻,便于携带,特别适用于电气设备的现场调试。产品标准配置是纯交流型指针显示的设备。
说明:可定制直流输出功能或者数字显示功能或者输出交流/直流电源连续无级可调功能,用户可根据需求选择订购:另计定制部分的费用。
型号名称:HRZD-3-380V携带式三相试验电源箱
输入额定电压:交流380V(220V),50Hz
输出额定电压:交流380V(220V),50Hz(DC:380V/220V定制)
输出额定电流:交流三相30A、单相15A
漏电保护器:380V,30A
动作电流<30mA
动作时间<0.1S
重量:10kg
体积:500x400x180(H)mm
|
|
|
|
|
|
HRZD-3
type portable three-phase power box tests |
|
|
Power
supply box is mainly for construction work in the field
test equipment or instrumentation other occasions there
is a demand to provide multi-channel distribution operation
of the test power. Power boxes are used 220V or 380V AC
input power, output current characteristics, electrical
switches can be single points, single co-operation of the
power supply. Our company produces the power box, and the
small size, light weight, easy to carry, especially suitable
for electrical equipment on-site commissioning. Standard
configuration is a pure exchange type of the pointer display
device.
Description:
The DC output can be customized or digital display or output
AC / DC power supply continuous stepless adjustable function,
users can choose according to demand order:
Another part of the cost of custom design.
Model Name: HRZD-3-380V three-phase test
portable power box
Input voltage: AC 380V (220V), 50Hz
Output Voltage: AC 380V (220V), 50Hz (DC:
380V/220V tailored)
Output rated current: AC three-phase 30A,
15A single-phase
Leakage protection: 380V, 30A
Action current <30mA
Operating time <0.1S
Weight: 10kg
Size: 500x400x180 (H) mm
|
|
|
|
|
|
|
|
|
|
|
|
