1) Features and use

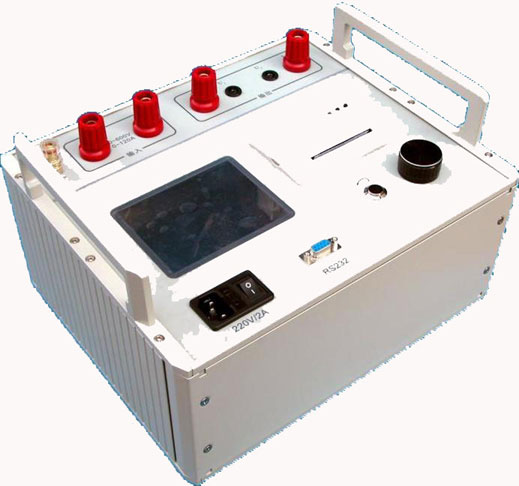

HRJZK type of generator rotor with ac impedance instrument
is my company launched a new generation of enhanced with
ac impedance tester, increased the display and print ac
impedance characteristic curve and can realize data with
the PC online download and editor of the test report function.
The apparatus adopts the most advanced high-speed microprocessor
technology and more powerful, and more superior performance,
more convenient to use. With high reliability, simple operation,
high measurement precision, small portable etc. Characteristics.
At present in the domestic leading level. Automatic acquisition,
measuring, display, storage, print all measuring parameters
and impedance characteristics curve (voltage, current, impedance,
power, frequency, equipment Numbers, time, etc.). Built-in
memory, the super capacity can be stored 6,400 test data
and by standard industrial communication interface (RS232)
uploaded to the PC machine, with the company development
of random software to realize data download, automatic generation
and edit the typical test report, facilitating technical
management and archive. With perfect over-voltage, over-current
protection function, which had flowed voltage protection
value is according to the test parameters Settings automatically
adjust, can ensure test equipment safety. Can hold concurrently
do single-phase transformer no-load, short-circuit test
and voltage (flow) of arc extinction coil transformer, the
volt-ampere characteristics of test. Bring big screen graphics
LCD, all Chinese menu interface, the cursor hint operation,
simple and convenient, Real-time display test data with
the curve, curvilinear coordinates automatically resized
to map reading more clearly. Cabin micro printer, real-time
print ac impedance test report and exchange impedance characteristic
curve. |
|
