用于测试变压器、电机、互感器等设备的直流电阻(测试速度快,测试结果直观可打印)。
主要技术指标: 测量精度:±0.2%
分辩率:1μΩ |
|
|
型 号 |
电 流 |
量 程 |
HRZT-1A |
1A |
1μΩ-200kΩ |
HRZT-2A |
2A |
1μΩ-200kΩ |
HRZT-3/5A |
3/5A |
1μΩ-20kΩ |
HRZT-10A |
10A |
1μΩ-2kΩ |
HRZT-20A |
20A |
1μΩ-200Ω |
HRZT-40/50A |
40/50A |
1μΩ-20Ω |
HRZT-80A |
80A |
1μΩ-2Ω |
|
|
|
|
|
|

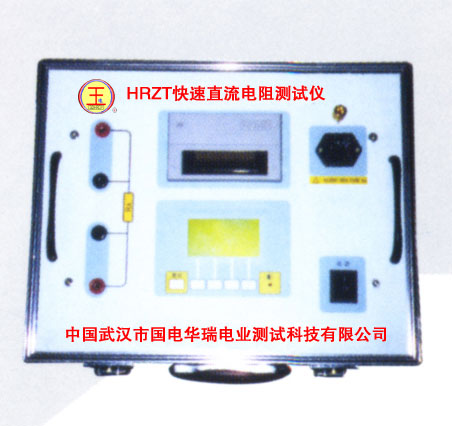

HRZT
Fast DC Resistance Tester |
|
|
It is used
for testing DC resistances of transformers, motors, instrument
transformers and other equipments’ (the speed of the test
is fast, the results can be showed and printed)
The main technical indexes:
Measurement accuracy:±0.2%
Resolution:1μΩ |
|
|
Model |
Electric current |
Range |
HRZT-1A |
1A |
1μΩ-200kΩ |
HRZT-2A |
2A |
1μΩ-200kΩ |
HRZT-3/5A |
3/5A |
1μΩ-20kΩ |
HRZT-10A |
10A |
1μΩ-2kΩ |
HRZT-20A |
20A |
1μΩ-200Ω |
HRZT-40/50A |
40/50A |
1μΩ-20Ω |
HRZT-80A |
80A |
1μΩ-2Ω |
|
|
|
|
|
|
|
|
|
|
|
