HRHG-CR雷电脉冲过电压在线监测高压冲击电压分压器 |
|
|
HRHG-CR系列雷电过电压在线监测脉冲高压冲击电压分压器 |
|
|
|
|
|
产品技术说明
●高压量程:0~300kV/0~400kV/0~10000kV;最高雷电脉冲冲击电压;
●适用于1~35kV~1000kV配电电力系统的高电压输电线路的雷电在线监测;
●脉冲带宽:30MHz,雷电波头时间响应分辨率小于100ns即<0.1us;
●二次测量接口:金属屏蔽外壳,50Ω或者75Ω匹配阻抗,同轴电缆接插件输出;
●一次高压端接口:金属均压盘,用紧固螺栓与母线电气联接;单相直接连接;
●非线性度:±1%;
●测量不确定:±1%;
●运行环境:户外工作,防水、防潮、耐高温、耐高寒和高海拔;户外安装型;
●需要采集雷击过电压以及电网的工频过电压,工作频率范围是35Hz~5MHz;
●长期不间断挂网运行,合成硅橡胶套管绝缘外壳。满足雷电脉冲波形的在线监测。
●安装在变电站内部作为雷电冲击测量传感器至监控机房的计算机数据采集机构上。
|
|
|
HRHG-CR
lightning pulse voltage online monitoring of high-voltage
impulse voltage divider
|
|
|
HRHG-CR series
of lightning over-voltage line monitoring pulsed high
voltage impulse voltage divider |
|
|
|
|
|
Product technical description
1 High range: 0~300kV/0~400kV/0~10000kV; highest impulse
voltage lightning pulse;
2 apply to high-voltage transmission lines of 35kV~1000kV
distribution power system lightning online monitoring;
3 pulse bandwidth: 30MHz the the lightning wave head time
response resolution of less than 100ns:<0.1us;
4 secondary measurement interface: metal shielded enclosure
50Ω or 75Ω matched impedance, coaxial cable connector output;
5 once the high voltage terminal interface: metal pressure
plate fastening bolts bus electrical connection; single-phase
direct connection;
6 nonlinearity: ± 1%;
7 Measurement Uncertainty: ± 1%;
8 Operating environment: outdoor work, waterproof, moisture-proof,
high temperature resistant, cold-resistant and high altitudes;
outdoor installation type;
9 need to collect lightning over-voltage and grid frequency
over voltage, operating frequency range is 35Hz~5MHz;
10 long uninterrupted linked network run synthetic silicone
rubber sleeve insulation shell.The to meet lightning pulse
waveform line monitoring.
11 installed in the substation as the lightning impulse
measurement sensor to the control room computer data collection
agencies.
|
|
|
|
|
|

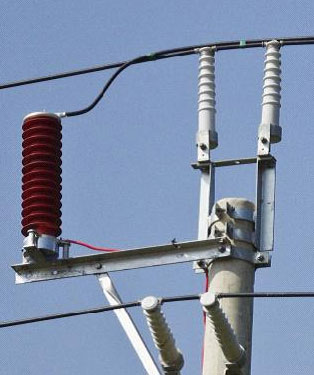

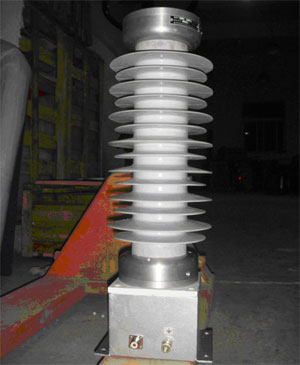

产品实物图片 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.本系列设备满足现行和最新发布的国际标准IEC、国家标准GB及有关行业标准DL。
2.引用执行的标准
GB311.1-1997高压输变电设备的绝缘配合
GB/T16927.1-1997高电压试验技术 一般试验要求
GB/T16927.2-1997高电压试验技术 测量系统
GB/T16896.1-1997高电压冲击试验用数字记录仪
GB/T16896.1-2005 高电压冲击测量仪器和软件
ZB F24 001-90冲击电压测量实施细则
GB191 包装运标志
GB4208 外壳防护等级
GB813-89 冲击试验用示波器及峰值表
JB/T563 耦合电容器及电容分压器订货技术条件
GB4704-92 脉冲电容器及直流电容器
JB/T9641-1999 《试验变压器》
DL/T557-94《高电压线路绝缘子陡波冲击试验、定义、试验方法和判据》
DL/T 846.1-2003 高电压测试设备通用技术条件第一部分:高电压分压器测量系统
DL/T 846.2-2004 高电压测试设备通用技术条件第二部分:冲击电压测量系统
DL/T 848.5-2004 高压试验装置通用技术条件 第5部分:冲击电压发生器
IEC61850《变电站的通信网络和系统》
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
