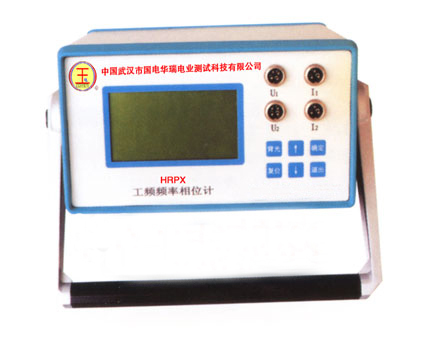

HRPX多功能工频频率相位计 |
|
|
主要技术指标
相位测试方法:任意两路U-U、U-I、I-I 相位测试精度:0.2级
U(方式U-I),10mA~10A分四档 I(在线检测100mA~5A)
分辨率:0.1°,0~360° 频率测试范围:40~60Hz,最大误差0.01Hz,可以测量任意一路或两路的频率值。
电压信号输入:5~500V 电流信号输入:0.5~5A
可测试功率因数范围:cosφ1~0 sinφ0~1
|
|
|
|
|
|
HRPX Industrial Frequency Phase
Meter |
|
|
The
main technical indexes
Measuring method of phase: either two lines U-U、U-I、I-I
Measuring precision of phase: 0.2 grade
U(U-I method), 10mA~10A divided into 4 grades
I(on-line detaction100mA~5A)
Resolution:0.1°,0~360°
Range of frequency testing: 40~60Hz, maximum error is
0.01Hz , and it can measure the frequency of either one
line or two lines
Signal voltage input: 5~500V
Current signal input: 0.5~5A
Range of tested power factor: cosφ1~0 sinφ0~1
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
